Opis:

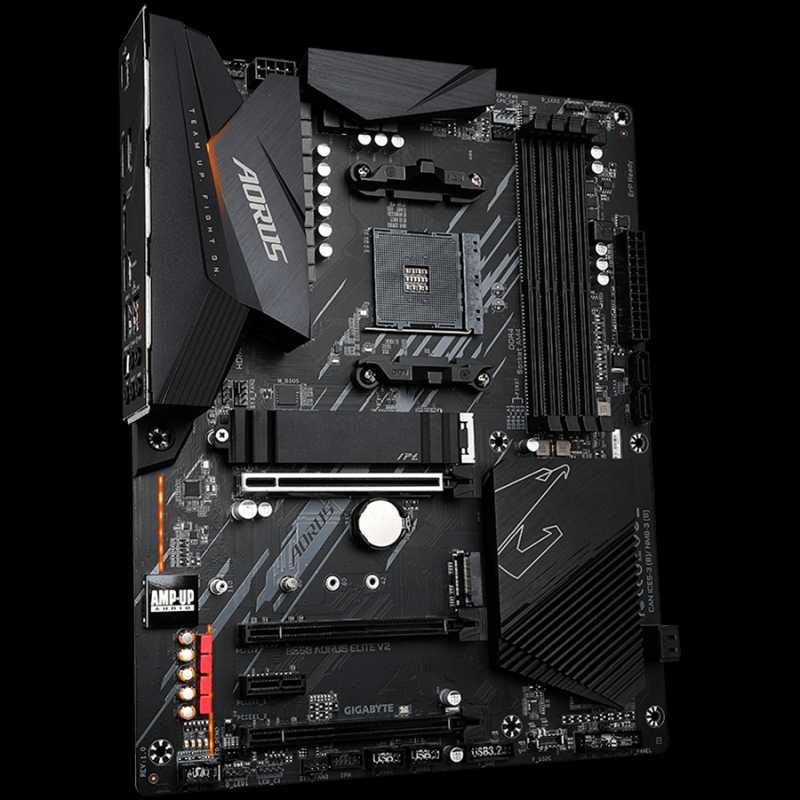

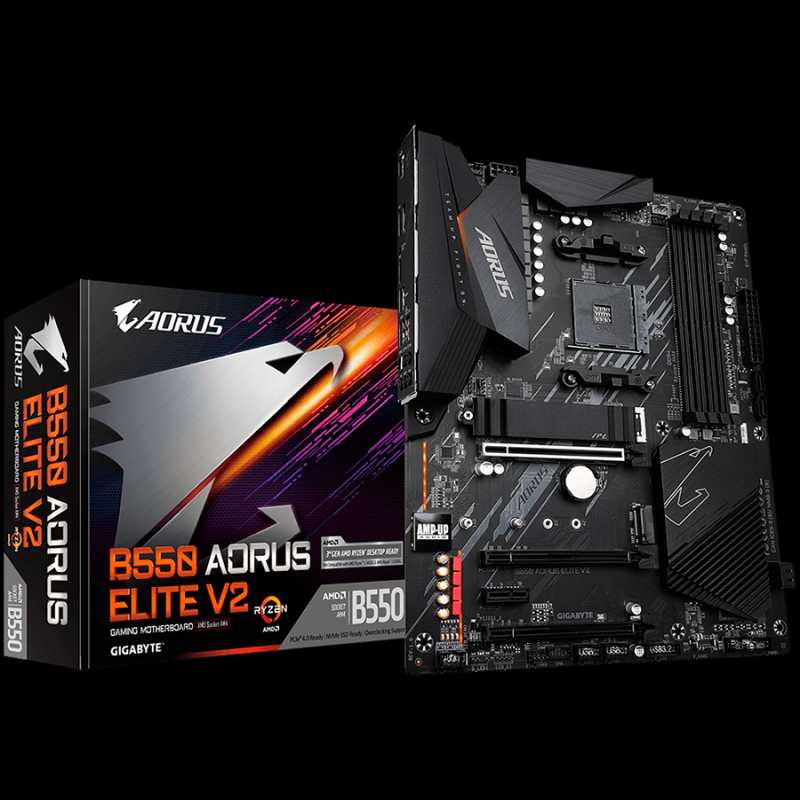

GIGABYTE Mainboard Desktop B550 AORUS ELITE V2 DDR4 (Socket AM4, 4x DDR4 up to 128GB, 1x PCI--Ex16x16 CPU, 3x PCI-Ex16 x2, x1_2,x1_1 Chipset, 2x M.2, 4x SATA 6Gb/s, 1xDP, 1xHDMI, 2x USB Gen2, 3x USB Gen1, Realtek 2.5GbE LAN, ATX, Retail)
Karakteristike:
GIGABYTE Mainboard Desktop B550 AORUS ELITE V2 DDR4 (Socket AM4, 4x DDR4 up to 128GB, 1x PCI--Ex16x16 CPU, 3x PCI-Ex16 x2, x1_2,x1_1 Chipset, 2x M.2, 4x SATA 6Gb/s, 1xDP, 1xHDMI, 2x USB Gen2, 3x USB Gen1, Realtek 2.5GbE LAN, ATX, Retail)
| Tehničke karakteristike |
|
|
Chipset:
|
AMD B550
|
|
Supports Central Processor Unit:
|
AMD Ryzen Series
|
|
CPU podnoĹľje:
|
Socket AM4
|
|
CPU Maximum Quantity Supports:
|
1
|
|
Vrsta memorije:
|
DDR4 SDRAM
|
|
Memory Form Factor:
|
DIMM 288-pin
|
|
Memory Speed:
|
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2933MHz(PC4-23400)
3200MHz(PC4-25600)
|
|
Maximum Installable System Memory Storage Capacity:
|
128 GB
|
|
Memory Slot Total Quantity:
|
2
|
|
Provides Error Checking Method:
|
ECC/non-ECC
|
|
Memory Features:
|
Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
|
|
Integrated:
|
Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (4)
Storage Controller:
PCIe/SATA (2 x M.2 (Key M))
|
|
Video Controller Integrated:
|
yes
|
|
Audio Integrated:
|
yes
|
|
Device Location:
|
Integrated
|
|
Audio Chipset:
|
Realtek ALC1200
|
|
Audio Output Mode:
|
7.1 Channel Surround
|
|
Compliant Audio Standards:
|
High Definition Audio
|
|
LAN Integrated:
|
yes
|
|
Data Link Protocol Supports:
|
Gigabit Ethernet/Fast Ethernet/Ethernet
2.5 Gbps
|
|
PCI Express 4.0 x16:
|
1
|
|
PCI Express 3.0 x2:
|
2
|
|
DisplayPort:
|
1
|
|
HDMI:
|
1 (HDMI (Type A))
|
|
USB 3.2 Gen 2:
|
2 (USB 3.2 (type A))
|
|
USB 2.0:
|
2 (USB 2.0 (type A))
|
|
Audio Interface:
|
5 (3.5-mm minijack)
|
|
LAN:
|
1 (RJ-45)
|
|
USB 3.2 Gen 1:
|
3 (USB 3.2 (type A))
|
|
S/PDIF-out Optical:
|
1 (TOSLINK)
|
|
BIOS Type:
|
AMI
|
|
BIOS Features:
|
Gigabyte Q-Flash
Gigabyte Xpress Install
WfM 2.0 Support
Gigabyte EasyTune
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
256 Mb Flash ROM
|
|
Power Connectors Type:
|
24+8 pin
|
|
Mainboard Features:
|
RGB Fusion
|
|
Software Included:
|
Norton Internet Security
|
|
Supported Operating System:
|
Microsoft Windows 10 64-bit
|
|
Included Accessories:
|
I/O Shield
User Guide
Driver CD
|
|
Form Factor:
|
ATX
|
|
Height (mm):
|
244 mm
|
|
Width (mm):
|
305 mm
|
|
Warranty Products Returnable:
|
Yes
|
|
Warranty Term (month):
|
36 month(s)
|
|
Warranty validation Criteria:
|
Serial Number
|
|
Pack Weight Brutto (kg):
|
2 kg
|
|
Pack Weight Netto (kg):
|
1.5 kg
|
|
Pieces in pack:
|
1
|
|
Box Weight Brutto (kg):
|
16 kg
|
|
Retail Packaging Net Weight Carton:
|
0.3 kg
|
|
Retail Packaging Net Weight Plastic:
|
0.2 kg
|
|
Packs in Box:
|
8
|
|
Package Type:
|
Retail
|
|
EAN Code:
|
4719331809898
|
Datum dodavanja u katalog:
31.7.2022. 14:28:26
