Opis:

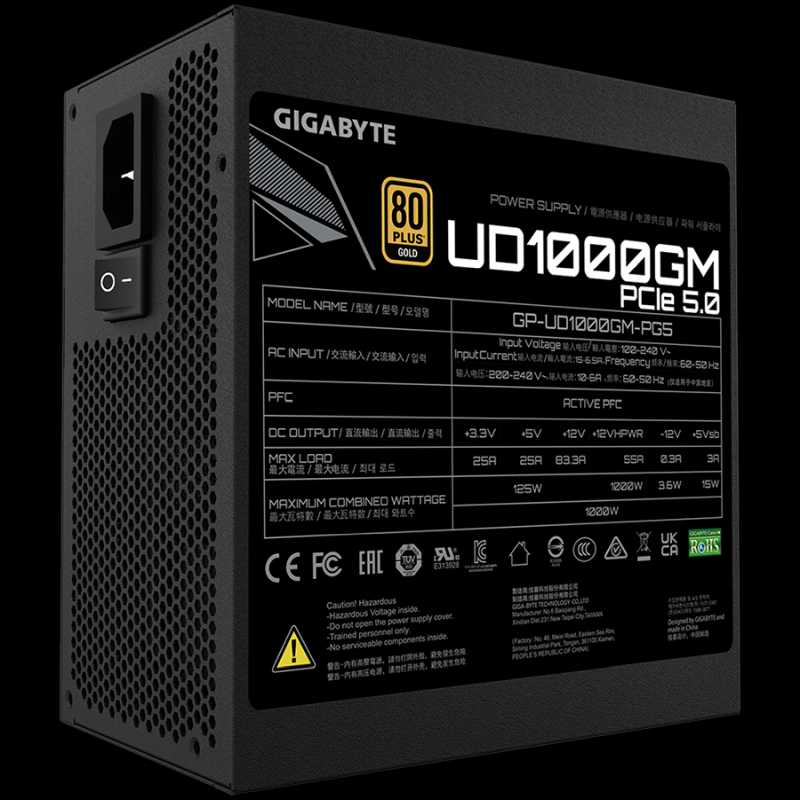

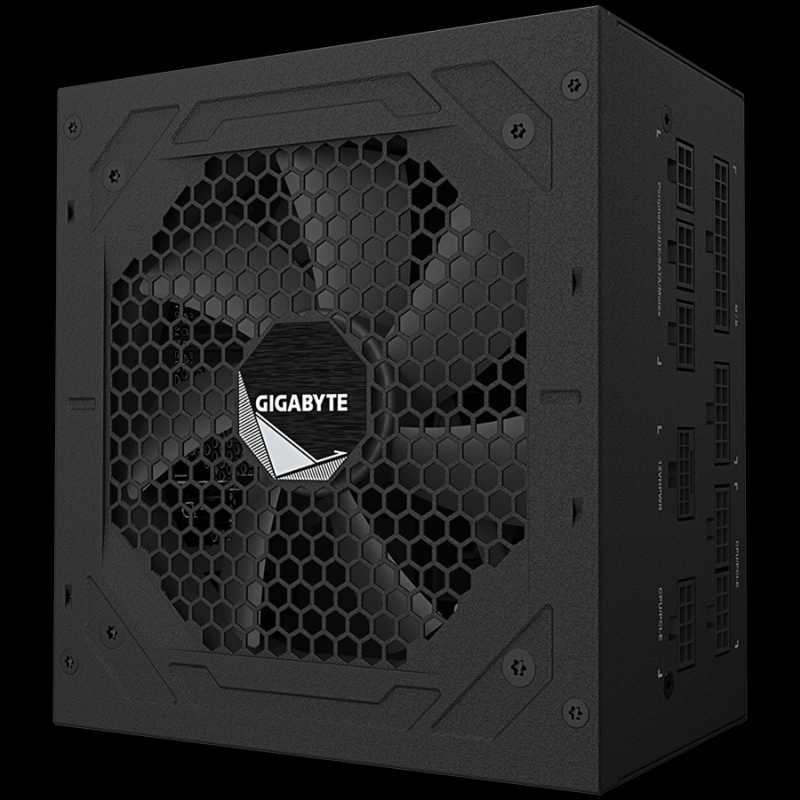

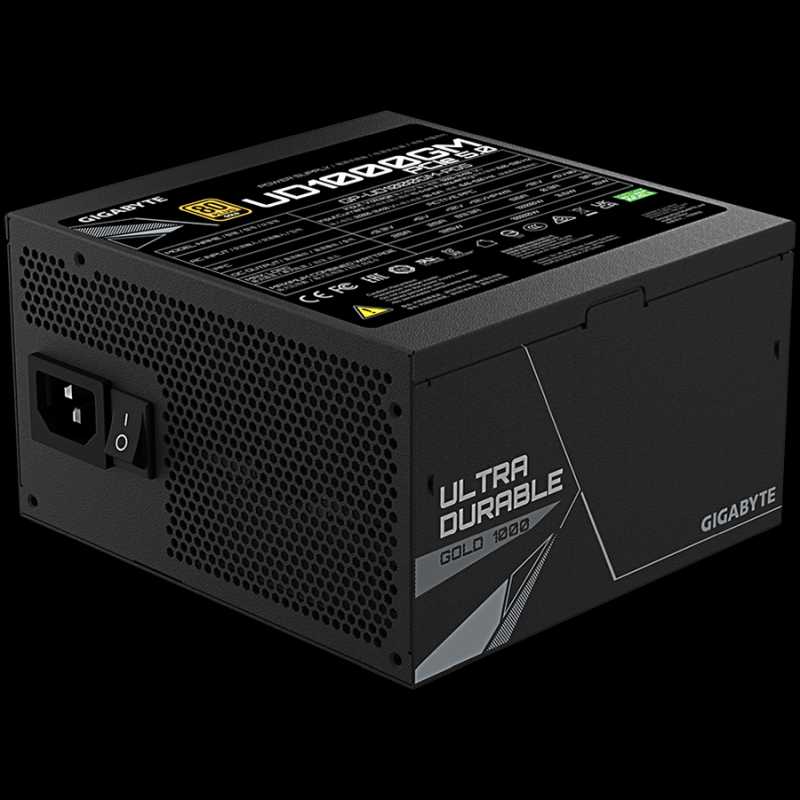

GIGABYTE UD1000GM Power Supply 1000W, PCIe Gen5 16Pin x 1 600W, Modular, 80 PLUS Gold, Japanese capacitors, 120mm smart control fan, EU plug
Karakteristike:
GIGABYTE UD1000GM Power Supply 1000W, PCIe Gen5 16Pin x 1 600W, Modular, 80 PLUS Gold, Japanese capacitors, 120mm smart control fan, EU plug
| Tehničke karakteristike |
|
|
Power Device Type:
|
Power Supply
|
|
Power Device Location:
|
Plug-in-module
|
|
Input Voltage:
|
AC 100-240 V
|
|
Input Frequency:
|
50/60 Hz
|
|
Rated Input Current:
|
15 A
|
|
Maximum Output Power:
|
1000 W
|
|
Circuit Protection:
|
Undervoltage
Over Temperature
Over Current
Short Circuit Protection
Over Power
|
|
Modular Power Supply:
|
Da
|
|
Power Adapter and Power Supply Features:
|
Active PFC
|
|
80 Plus Certification:
|
80 Plus Gold
|
|
Efficiency:
|
90%
|
|
+3.3V:
|
25 A (62.5 W)
|
|
+5V:
|
25 A (62.5 W)
|
|
+12V:
|
83.3 A (1000 W)
|
|
-12V:
|
0.3 A (3.6 W)
|
|
+5VSB:
|
3 A (15 W)
|
|
20+4-pin Main Connector:
|
1
|
|
4/8-pin +12V Power Connector:
|
2
|
|
4-pin Peripheral Power Connector:
|
3
|
|
4-pin Floppy Drive Connector:
|
1
|
|
S-ATA Connector:
|
8
|
|
6/8-pin PCI Express Connector:
|
4
|
|
Fans Installed Quantity:
|
1
|
|
Fan Diameter:
|
120 mm
|
|
Mean Time Between Failures:
|
100000 hr
|
|
External Color:
|
Black
|
|
Material:
|
Metal
|
|
Included Accessories:
|
Quick Start Guide
|
|
Depth (mm):
|
150 mm
|
|
Height (mm):
|
86 mm
|
|
Width (mm):
|
140 mm
|
|
Warranty Products Returnable:
|
Yes
|
|
Warranty Term (month):
|
60 month(s)
|
|
Warranty validation Criteria:
|
Serial Number
|
|
Pack Weight Brutto (kg):
|
2 kg
|
|
Pack Weight Netto (kg):
|
1.5 kg
|
|
Pieces in pack:
|
1
|
|
Box Weight Brutto (kg):
|
2 kg
|
|
Retail Packaging Net Weight Carton:
|
0.2 kg
|
|
Retail Packaging Net Weight Plastic:
|
0.1 kg
|
|
Packs in Box:
|
1
|
|
Package Type:
|
Retail
|
|
EAN Code:
|
4719331553234
|
|
Boja:
|
Crna
|
|
Dodaci:
|
Brzi priruÄŤnik
|
|
Dubina (mm):
|
150 mm
|
|
Visina (mm):
|
86 mm
|
|
Ĺ irina (mm):
|
140 mm
|
|
Jamstvo u Hrvatskoj:
|
Da
|
|
Jamstveni rok (mjeseci):
|
60 mjeseci(a)
|
|
Validacija jamstva:
|
Serijski broj
|
|
Bruto teĹľina (kg):
|
2 kg
|
|
Neto teĹľina (kg):
|
1.5 kg
|
|
KoliÄŤina u pakiranju:
|
1
|
|
Bruto teĹľina kutije (kg):
|
2 kg
|
|
TeĹľina kartona:
|
0.2 kg
|
|
TeĹľina plastike:
|
0.1 kg
|
|
KoliÄŤina u kutiji:
|
1
|
|
Tip pakiranja:
|
Retail
|
|
EAN kod:
|
4719331553234
|
|
Economic operator in EU / authorized representative:
|
Giga-Byte Technology BV
|
|
Postal address:
|
Steenoven 24, 5626 DK Eindhoven, Netherlands
|
|
Electronic address:
|
[email protected]
|
|
Vrsta napajanja:
|
Napajanje
|
|
Napajanje:
|
Plug-in modul
|
|
Ulazna struja:
|
15 A
|
|
Izlazna snaga:
|
1000 W
|
|
Zaštita strujnog kruga:
|
Undervoltage
Over Temperature
Over Current
Short Circuit Protection
Over Power
|
|
ZnaÄŤajke adaptera i napajanja:
|
Active PFC
|
|
Promjer:
|
120 mm
|
|
MTBF:
|
100000 h
|
|
Vrsta pakiranja:
|
Maloprodajno
|
Datum dodavanja u katalog:
8.10.2022. 7:32:27
