Opis:

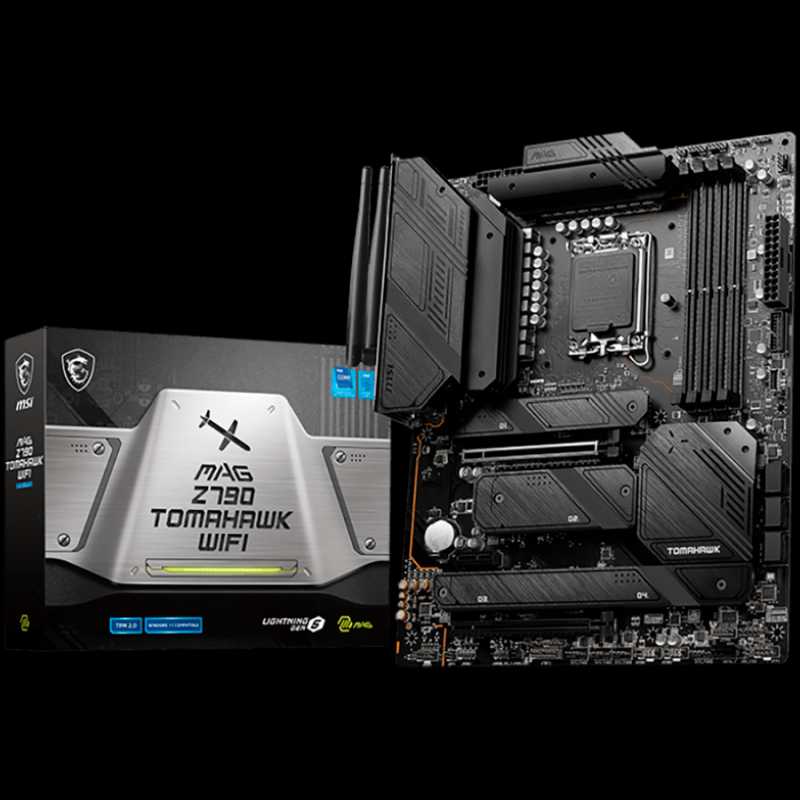

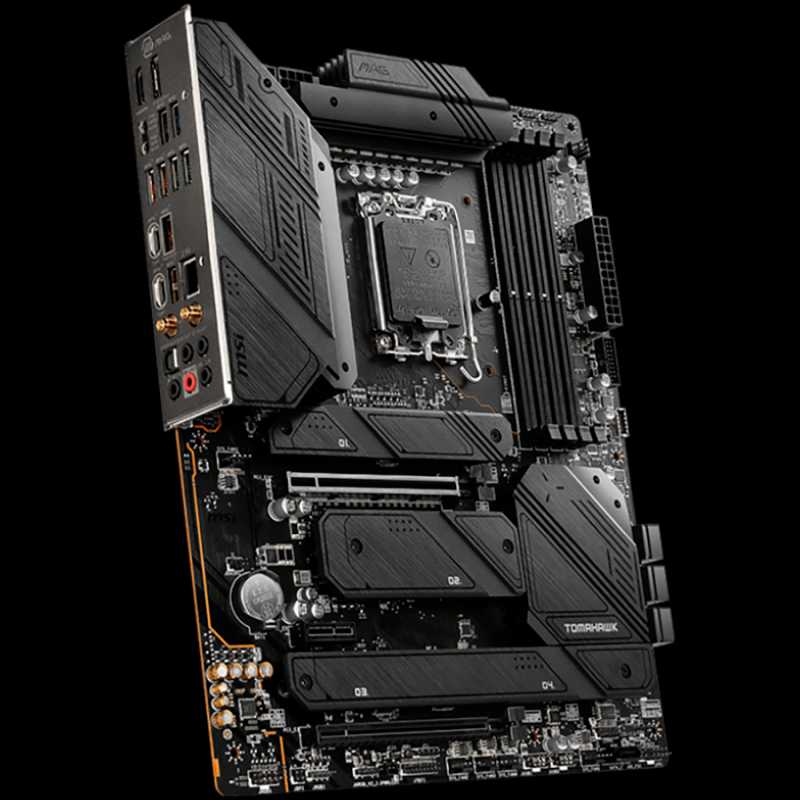

MSI Mainboard Desktop MAG Z790 TOMAHAWK WIFI (LGA 1700, 4x DDR5 max. 128GB, 2x PCI-E x16x16, 1x PCI-E x1, 4x M.2 4.0, 7x SATA, 4x USB 3.2 Gen1, 4x USB 3.2 Gen2 1x USB Type-C 3.2 Gen2, 1x HDMI, 1x DP, 2.5Gbps LAN, Wi-Fi 6E, ATX, Retail)
Karakteristike:
MSI Mainboard Desktop MAG Z790 TOMAHAWK WIFI (LGA 1700, 4x DDR5 max. 128GB, 2x PCI-E x16x16, 1x PCI-E x1, 4x M.2 4.0, 7x SATA, 4x USB 3.2 Gen1, 4x USB 3.2 Gen2 1x USB Type-C 3.2 Gen2, 1x HDMI, 1x DP, 2.5Gbps LAN, Wi-Fi 6E, ATX, Retail)
| Tehničke karakteristike |
|
|
Chipset:
|
Intel Z790
|
|
Supports Central Processor Unit:
|
Intel 12th Gen Processors
Intel 13th Gen Processors
|
|
CPU podnoĹľje:
|
Socket 1700
|
|
CPU Maximum Quantity Supports:
|
1
|
|
Vrsta memorije:
|
DDR5 SDRAM
|
|
Memory Form Factor:
|
DIMM 288-pin
|
|
Memory Speed:
|
5600MHz(PC5-44800)
|
|
Maximum Installable System Memory Storage Capacity:
|
128 GB
|
|
Memory Slot Total Quantity:
|
4
|
|
Provides Error Checking Method:
|
non-ECC
|
|
Memory Features:
|
Unbuffered
XMP 3.0
|
|
Integrated:
|
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
PCI Express 4.0 x4 (3 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
PCIe 4.0 x4/SATA (1 x M.2 (Key M))
Storage Controller:
SATA III-600 (7)
|
|
Plug-in-card:
|
Wi-Fi Controller:
1 x M.2 (Key E)
|
|
Audio Integrated:
|
yes
|
|
Device Location:
|
Integrated
|
|
Audio Chipset:
|
Realtek ALC4080
|
|
Audio Data Width:
|
32-bit
|
|
Audio Output Mode:
|
7.1 Channel Surround
|
|
Compliant Audio Standards:
|
High Definition Audio
|
|
LAN Integrated:
|
yes
|
|
Wi-Fi:
|
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n Wi-Fi 4
IEEE 802.11ac Wi-Fi 5
IEEE 802.11ax Wi-Fi 6
|
|
Bluetooth:
|
Bluetooth 5.3
|
|
Data Link Protocol Supports:
|
2.5 Gbps
|
|
PCI Express 5.0 x16:
|
1
|
|
PCI Express 3.0 x1:
|
1
|
|
PCI Express 4.0 x4:
|
1
|
|
DisplayPort:
|
1
|
|
USB 3.2 Gen 1:
|
4 (USB 3.2 (type A))
|
|
USB 3.2 Gen 2:
|
4 (USB 3.2 (type A)); 1 (USB 3.2 (type C))
|
|
LAN:
|
1 (RJ-45)
|
|
Audio Interface:
|
5 (3.5-mm minijack)
|
|
HDMI:
|
1 (HDMI (Type A))
|
|
USB 3.2 Gen 2 x2:
|
1 (USB 3.2 (type C))
|
|
Antenna:
|
2
|
|
S/PDIF-out:
|
1
|
|
Supported Operating System:
|
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
|
|
Cable Included:
|
2 x SATA cables
|
|
Included Accessories:
|
Quick Start Guide
WiFi antenna
|
|
Form Factor:
|
ATX
|
|
Height (mm):
|
304.8 mm
|
|
Width (mm):
|
243.84 mm
|
|
Warranty Products Returnable:
|
Yes
|
|
Warranty Term (month):
|
36 month(s)
|
|
Warranty validation Criteria:
|
Serial Number
|
|
Pack Weight Brutto (kg):
|
2 kg
|
|
Pack Weight Netto (kg):
|
1.5 kg
|
|
Pieces in pack:
|
2
|
|
Box Weight Brutto (kg):
|
20 kg
|
|
Retail Packaging Net Weight Carton:
|
0.3 kg
|
|
Retail Packaging Net Weight Plastic:
|
0.2 kg
|
|
Packs in Box:
|
10
|
|
Package Type:
|
Retail
|
|
EAN Code:
|
4711377025492
|
|
CPU podrška:
|
Intel 12th Gen Processors
Intel 13th Gen Processors
|
|
CPU Max. koliÄŤina:
|
1
|
|
Format memorije:
|
DIMM 288-pin
|
|
Brzina memorije:
|
5600MHz(PC5-44800)
|
|
Max. kapacitet memorije:
|
128 GB
|
|
KoliÄŤina utora:
|
4
|
|
Provjera pogrešaka:
|
non-ECC
|
|
ZnaÄŤajke memorije:
|
Unbuffered
XMP 3.0
|
|
Integrirani audio:
|
Da
|
|
Lokacija:
|
Integrirano
|
|
NaÄŤin rada audio izlaza:
|
7.1 Channel Surround
|
|
Audio standard:
|
HD audio
|
|
Integrirani LAN:
|
Da
|
|
PodrĹľana brzina:
|
2.5 Gbps
|
|
Audio izlaz:
|
5 (3.5-mm minijack)
|
|
PodrĹľani operativni sustavi:
|
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
|
|
Dodaci:
|
Brzi priruÄŤnik
WiFi antenna
|
|
Format:
|
ATX
|
|
Visina (mm):
|
304.8 mm
|
|
Ĺ irina (mm):
|
243.84 mm
|
|
Jamstvo u Hrvatskoj:
|
Da
|
|
Jamstveni rok (mjeseci):
|
36 mjeseci(a)
|
|
Validacija jamstva:
|
Serijski broj
|
|
Bruto teĹľina (kg):
|
2 kg
|
|
Neto teĹľina (kg):
|
1.5 kg
|
|
KoliÄŤina u pakiranju:
|
2
|
|
Bruto teĹľina kutije (kg):
|
20 kg
|
|
TeĹľina kartona:
|
0.3 kg
|
|
TeĹľina plastike:
|
0.2 kg
|
|
KoliÄŤina u kutiji:
|
10
|
|
Tip pakiranja:
|
Retail
|
|
EAN kod:
|
4711377025492
|
|
Integrirano:
|
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
PCI Express 4.0 x4 (3 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
PCIe 4.0 x4/SATA (1 x M.2 (Key M))
Storage Controller:
SATA III-600 (7)
|
|
Vrsta pakiranja:
|
Maloprodajno
|
|
Ĺ irina audio podataka:
|
32-bit
|
|
Economic operator in EU / authorized representative:
|
Micro-Star International Co Ltd. C/O MSI Computer Europe BV
|
|
Postal address:
|
Science Park Eindhoven 5706, 5692 ER, Son, The Netherlands
|
|
Electronic address:
|
[email protected]
|
|
Kabeli:
|
2 x SATA cables
|
|
Chipset:
|
Realtek ALC4080
|
|
Integriran:
|
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
PCI Express 4.0 x4 (3 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
PCIe 4.0 x4/SATA (1 x M.2 (Key M))
Storage Controller:
SATA III-600 (7)
|
|
Vrsta:
|
Integriran
|
|
Audio izlaz:
|
7.1 Channel Surround
|
Datum dodavanja u katalog:
