Opis:

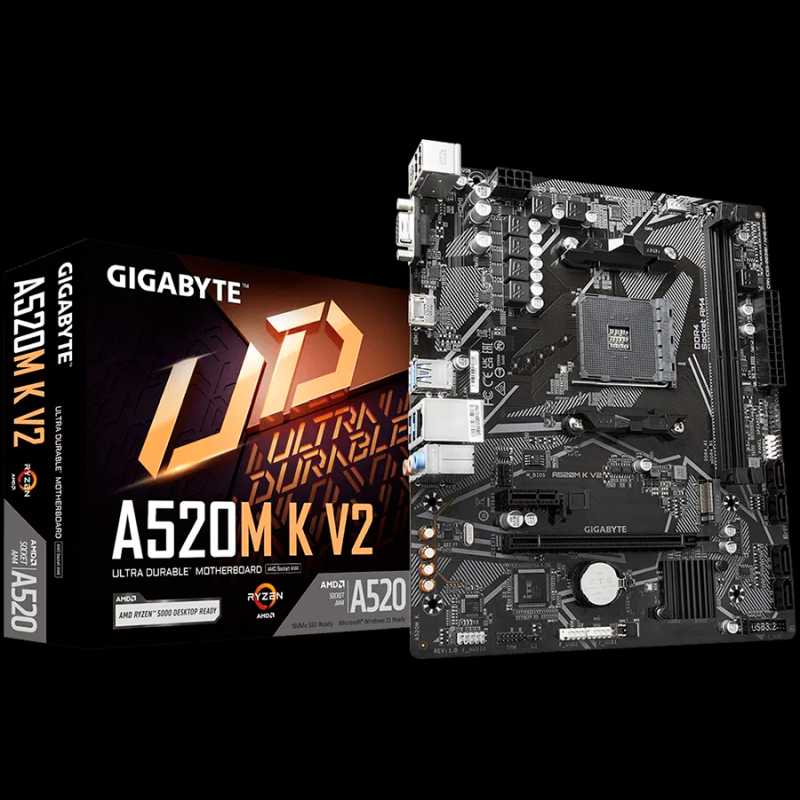

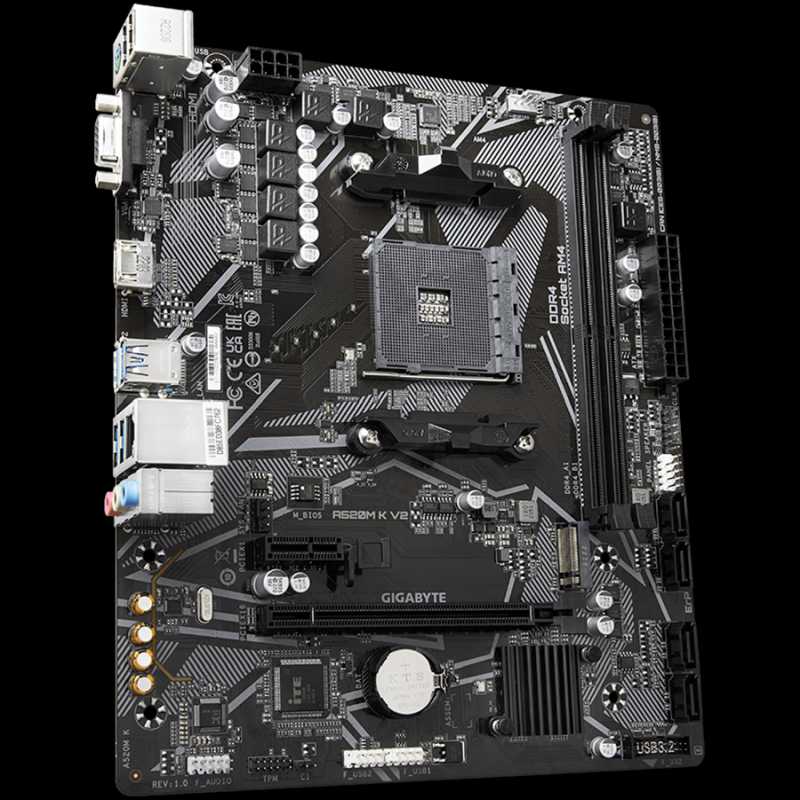

GIGABYTE MainBoard A520M K (AM4, 2x DDR4, 1x M.2, 4x SATA, 1x HDMI, 1x PCI Express x16 3.0, , 1x PCI Express x1 3.0, 6x USB 3.2 Gen1, 6x USB 2.0/1.1, GLAN) mATX
Karakteristike:
GIGABYTE MainBoard A520M K (AM4, 2x DDR4, 1x M.2, 4x SATA, 1x HDMI, 1x PCI Express x16 3.0, , 1x PCI Express x1 3.0, 6x USB 3.2 Gen1, 6x USB 2.0/1.1, GLAN) mATX
| Tehničke karakteristike |
|
|
Chipset:
|
AMD A520
|
|
Supports Central Processor Unit:
|
AMD Ryzen Series 3rd Generation
AMD Ryzen Series 4th Generation
AMD Ryzen Series 5th Generation
|
|
CPU podnoĹľje:
|
Socket AM4
|
|
CPU Maximum Quantity Supports:
|
1
|
|
Vrsta memorije:
|
DDR4 SDRAM
|
|
Memory Form Factor:
|
DIMM 288-pin
|
|
Memory Speed:
|
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2933MHz(PC4-23400)
3200MHz(PC4-25600)
|
|
Maximum Installable System Memory Storage Capacity:
|
64 GB
|
|
Memory Slot Total Quantity:
|
2
|
|
Provides Error Checking Method:
|
non-ECC
|
|
Memory Features:
|
Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
|
|
Integrated:
|
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1
SATA III-600 (4)
|
|
Audio Integrated:
|
yes
|
|
Device Location:
|
Integrated
|
|
Audio Output Mode:
|
7.1 Channel Surround
|
|
Compliant Audio Standards:
|
High Definition Audio
|
|
LAN Integrated:
|
yes
|
|
Data Link Protocol Supports:
|
Gigabit Ethernet/Fast Ethernet/Ethernet
|
|
PCI Express 3.0 x16:
|
1
|
|
PCI Express 3.0 x1:
|
1
|
|
PS/2:
|
1
|
|
VGA:
|
1 (15-pin D-sub)
|
|
HDMI:
|
1 (HDMI (Type A))
|
|
USB 3.2 Gen 1:
|
4 (USB 3.2 (type A))
|
|
USB 2.0:
|
2 (USB 2.0 (type A))
|
|
LAN:
|
1 (RJ-45)
|
|
Audio Interface:
|
3 (3.5-mm minijack)
|
|
BIOS Features:
|
Gigabyte Q-Flash
Gigabyte Xpress Install
WfM 2.0 Support
PnP 1.0a Support
SMBIOS 2.7 Support
128 Mb Flash ROM
DMI 2.7 Support
ACPI 5.0 Support
|
|
Power Connectors Type:
|
24+8 pin
|
|
Software Included:
|
Norton Internet Security (OEM version)
|
|
Supported Operating System:
|
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
|
|
Form Factor:
|
Micro ATX
|
|
Height (mm):
|
198 mm
|
|
Width (mm):
|
233 mm
|
|
Warranty Products Returnable:
|
Yes
|
|
Warranty Term (month):
|
36 month(s)
|
|
Warranty validation Criteria:
|
Serial Number
|
|
Pack Weight Brutto (kg):
|
0.65 kg
|
|
Pack Weight Netto (kg):
|
0.5 kg
|
|
Pieces in pack:
|
1
|
|
Box Weight Brutto (kg):
|
10 kg
|
|
Retail Packaging Net Weight Carton:
|
0.2 kg
|
|
Retail Packaging Net Weight Plastic:
|
0.2 kg
|
|
Packs in Box:
|
10
|
|
Package Type:
|
Retail
|
|
CPU podrška:
|
AMD Ryzen Series 3rd Generation
AMD Ryzen Series 4th Generation
AMD Ryzen Series 5th Generation
|
|
CPU Max. koliÄŤina:
|
1
|
|
Format memorije:
|
DIMM 288-pin
|
|
Brzina memorije:
|
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2933MHz(PC4-23400)
3200MHz(PC4-25600)
|
|
Max. kapacitet memorije:
|
64 GB
|
|
KoliÄŤina utora:
|
2
|
|
Provjera pogrešaka:
|
non-ECC
|
|
ZnaÄŤajke memorije:
|
Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
|
|
Integrirani audio:
|
Da
|
|
Lokacija:
|
Integrirano
|
|
NaÄŤin rada audio izlaza:
|
7.1 Channel Surround
|
|
Audio standard:
|
HD audio
|
|
Integrirani LAN:
|
Da
|
|
PodrĹľana brzina:
|
Gigabit Ethernet/Fast Ethernet/Ethernet
|
|
Audio izlaz:
|
3 (3.5-mm minijack)
|
|
BIOS:
|
Gigabyte Q-Flash
Gigabyte Xpress Install
WfM 2.0 Support
PnP 1.0a Support
SMBIOS 2.7 Support
128 Mb Flash ROM
DMI 2.7 Support
ACPI 5.0 Support
|
|
Softver:
|
Norton Internet Security (OEM version)
|
|
PodrĹľani operativni sustavi:
|
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
|
|
Format:
|
Micro ATX
|
|
Visina (mm):
|
198 mm
|
|
Ĺ irina (mm):
|
233 mm
|
|
Jamstvo u Hrvatskoj:
|
Da
|
|
Jamstveni rok (mjeseci):
|
36 mjeseci(a)
|
|
Validacija jamstva:
|
Serijski broj
|
|
Bruto teĹľina (kg):
|
0.65 kg
|
|
Neto teĹľina (kg):
|
0.5 kg
|
|
KoliÄŤina u pakiranju:
|
1
|
|
Bruto teĹľina kutije (kg):
|
10 kg
|
|
TeĹľina kartona:
|
0.2 kg
|
|
TeĹľina plastike:
|
0.2 kg
|
|
KoliÄŤina u kutiji:
|
10
|
|
Tip pakiranja:
|
Retail
|
|
Integrirano:
|
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1
SATA III-600 (4)
|
|
Vrsta pakiranja:
|
Maloprodajno
|
|
Economic operator in EU / authorized representative:
|
Giga-Byte Technology BV
|
|
Postal address:
|
Steenoven 24, 5626 DK Eindhoven, Netherlands
|
|
Electronic address:
|
[email protected]
|
|
Integriran:
|
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1
SATA III-600 (4)
|
|
Vrsta:
|
Integriran
|
|
Audio izlaz:
|
7.1 Channel Surround
|
Datum dodavanja u katalog:
8.4.2023. 10:59:19
