| Tehničke karakteristike |
|
|
Display Type:
|
LCD Display
|
|
Display Technology:
|
TFT Active Matrix
|
|
Diagonal Length:
|
23.6"
|
|
Type of Matrix:
|
IPS
|
|
Pitch Type:
|
Dot Pitch
|
|
Pitch Width:
|
0.274 mm
|
|
Color Support:
|
16.7M
|
|
Maksimalna rezolucija:
|
1920x1080
|
|
Maximum Horizontal Scan Frequency:
|
83 kHz
|
|
Minimum Horizontal Scan Frequency:
|
30 kHz
|
|
Svjetlina:
|
400 cd/m^2
|
|
Kontrast:
|
1 000 : 1
|
|
Image Max. H-View Angle:
|
178 °
|
|
Image Max. V-View Angle:
|
178 °
|
|
Response Time:
|
14 ms
|
|
Screen Treatment:
|
Hard Coating 7H
|
|
Image Aspect Ratio:
|
16:9
|
|

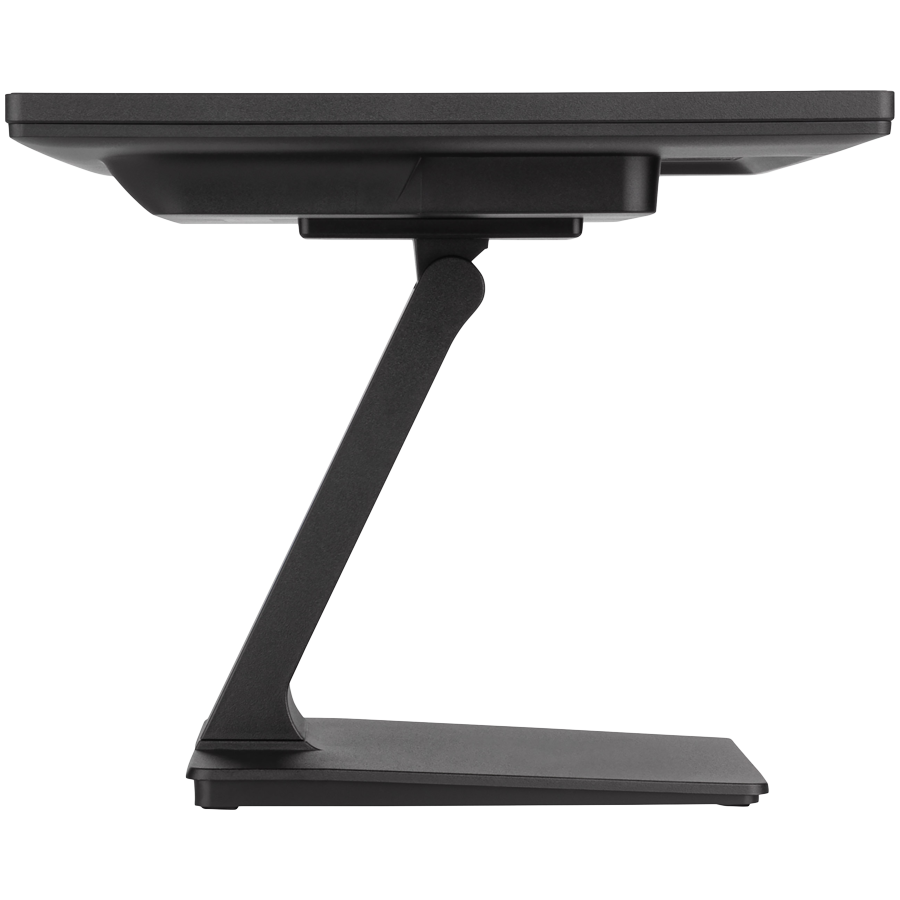

Ergonomic Features:
|
Tilt
|
|
Display Features:
|
Touch-screen, LED Backlight, Full HD, Fingerprint-resistant Oleophobic Coating, Flicker-free Technology, 10 Point Touch-Screen, Low Blue Light, HDR 400
|
|
Speaker Form Factor:
|
Integrirano
|
|
Audio Output Mode:
|
Stereo
|
|
Output Power per Channel:
|
1 W
|
|
Output Power:
|
2 W
|
|

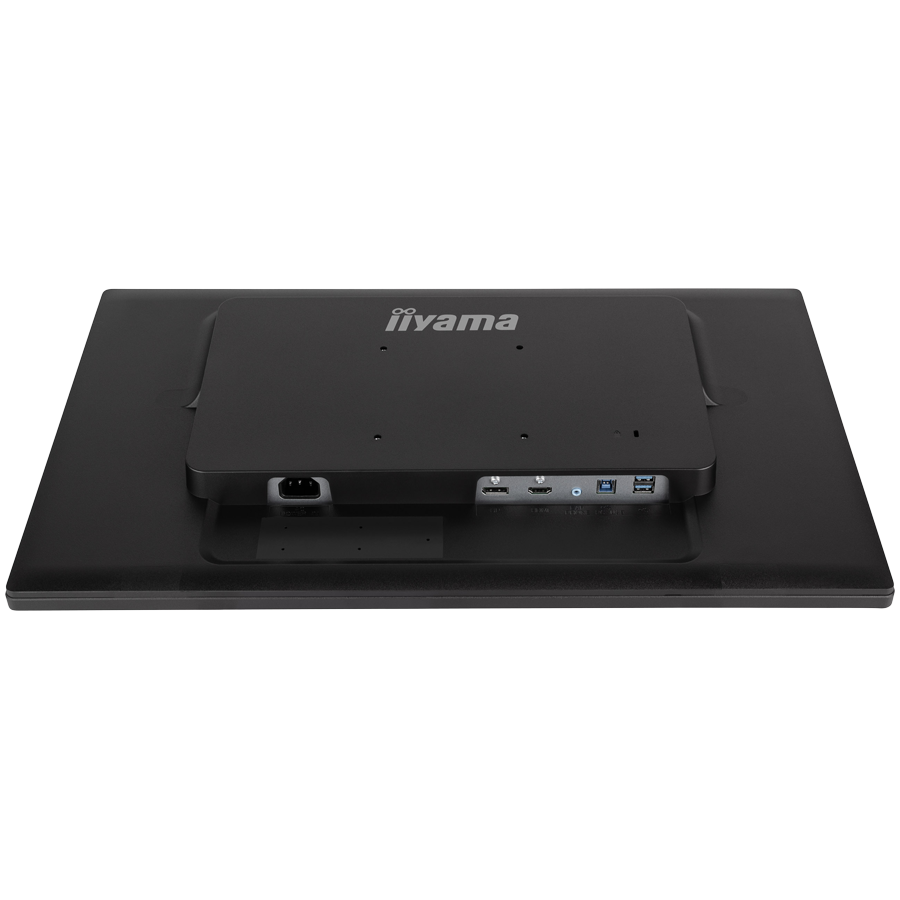

USB 3.0:
|
2 (USB 3.0 (Type A))
|
|
HDMI:
|
1 (HDMI (Type A))
|
|
Audio Interface:
|
1 (3.5 mm jack)
|
|
Power Device Type:
|
Power Supply
|
|
Power Device Location:
|
Internal
|
|
Maximum Input Voltage:
|
240 V
|
|
Minimum Input Voltage:
|
100 V
|
|
Maximum Input Frequency:
|
60 Hz
|
|
Minimum Input Frequency:
|
50 Hz
|
|
Power Consumption Operational:
|
18 W
|
|
Cable Included:
|
Power Cable, USB Cable, HDMI Cable
|
|
Included Accessories:
|
Quick Start Guide, Safety Sheet
|
|
Mounting Capability:
|
Desktop/Wallmount
|
|
Security Features:
|
Kensington Lock
|
|

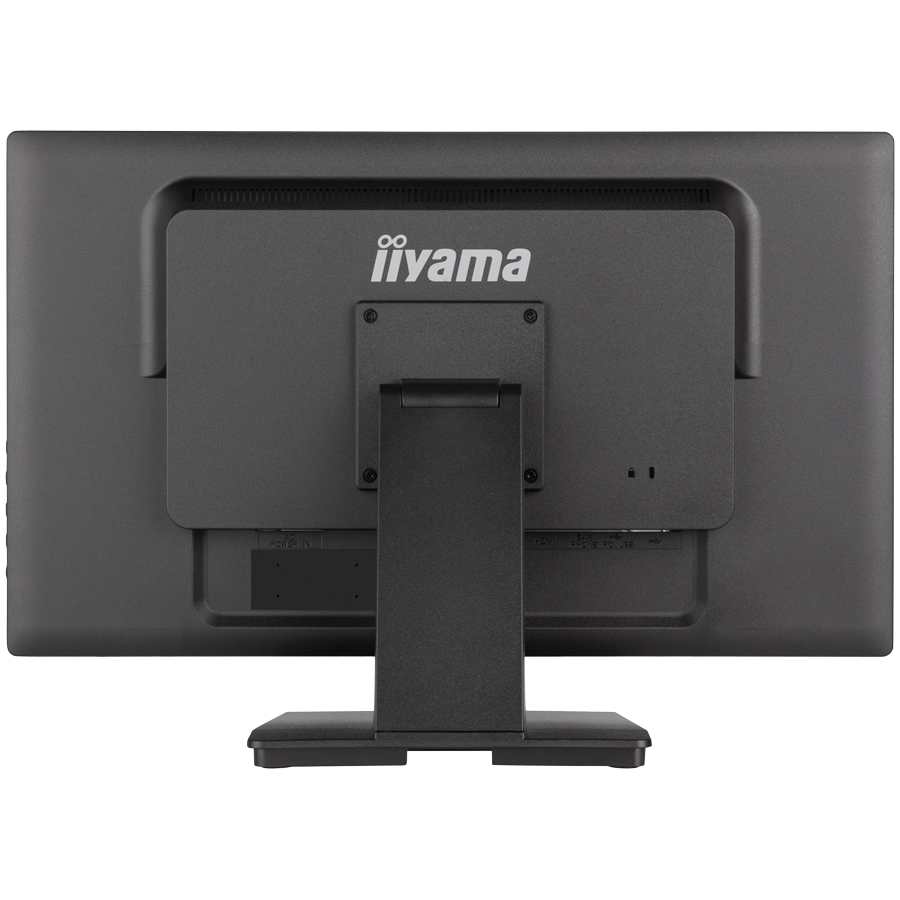

Flat Display Mounting Interface:
|
100mm
|
|
Monitor Compliant Standards:
|
Plug and Play, RoHS, REACH
|
|
External Color:
|
Black
|
|
Mean Time Between Failures:
|
50000 hr
|
|
Warranty Products Returnable:
|
Yes
|
|
Warranty Term (month):
|
36 month(s)
|
|
Warranty validation Criteria:
|
Serial Number
|
|
Pack Weight Brutto (kg):
|
6 kg
|
|
Pack Weight Netto (kg):
|
5.6 kg
|
|
Pieces in pack:
|
1
|
|
Box Weight Brutto (kg):
|
6 kg
|
|
Retail Packaging Net Weight Carton:
|
1 kg
|
|
Retail Packaging Net Weight Plastic:
|
1 kg
|
|
Packs in Box:
|
1
|
|
Maximum Resolution:
|
1920x1080
|
|
Image Brightness:
|
400 cd/m2
|
|
Image Contrast:
|
1 000 : 1
|
|
Depth (mm):
|
253.5 mm
|
|
Height (mm):
|
385 mm
|
|
Width (mm):
|
567 mm
|
|
Weight:
|
5.6 kg
|
|
EPREL:
|
1459429
|
|
Dijagonala ekrana:
|
23.6"
|
|
Max. H-kut:
|
178 °
|
|
Max. V-kut:
|
178 °
|
|
Potrošnja:
|
18 W
|
|
Dodaci:
|
Brzi priruÄŤnik, Safety Sheet
|
|
Boja:
|
Crna
|
|
Dubina (mm):
|
253.5 mm
|
|
Visina (mm):
|
385 mm
|
|
Ĺ irina (mm):
|
567 mm
|
|
Jamstvo u Hrvatskoj:
|
Da
|
|
Jamstveni rok (mjeseci):
|
36 mjeseci(a)
|
|
Validacija jamstva:
|
Serijski broj
|
|
Bruto teĹľina (kg):
|
6 kg
|
|
Neto teĹľina (kg):
|
5.6 kg
|
|
KoliÄŤina u pakiranju:
|
1
|
|
Bruto teĹľina kutije (kg):
|
6 kg
|
|
TeĹľina kartona:
|
1 kg
|
|
TeĹľina plastike:
|
1 kg
|
|
KoliÄŤina u kutiji:
|
1
|
|
Viewable Display Diagonal Length:
|
23.6"
|
|
Power Consumption Stand By/Sleep:
|
0.3 W
|
|
Package Type:
|
Box
|
|
Vrsta ekrana:
|
LCD Display
|
|
Dijagonala:
|
23.6"
|
|
Vidljiva dijagonala:
|
23.6"
|
|
Raspored piksela:
|
Dot Pitch
|
|
Razmak piksela:
|
0.274 mm
|
|
Podrška boje:
|
16.7M
|
|
Odziv:
|
14 ms
|
|
Površinska obrada:
|
Hard Coating 7H
|
|
Omjer slike:
|
16:9
|
|
Ergonomija:
|
Tilt
|
|
ZnaÄŤajke ekrana:
|
Touch-screen, LED Backlight, Full HD, Fingerprint-resistant Oleophobic Coating, Flicker-free Technology, 10 Point Touch-Screen, Low Blue Light, HDR 400
|
|
NaÄŤin rada audio izlaza:
|
Stereo
|
|
Audio izlaz:
|
1 (3.5 mm jack)
|
|
Napajanje:
|
Interni
|
|
Max. ulazna frekvencija:
|
60 Hz
|
|
Max. ulazni napon:
|
240 V
|
|
Min. ulazna frekvencija:
|
50 Hz
|
|
Min. ulazni napon:
|
100 V
|
|
Kabeli:
|
Strujni kabel, USB kabel, HDMI Cable
|
|
Postavljanje:
|
Stol/Zid
|
|
Sigurnosne znaÄŤajke:
|
Kensington
|
|
VESA:
|
100mm
|
|
Sukladnost:
|
Plug and Play, RoHS, REACH
|
|
MTBF:
|
50000 h
|
|
Vrsta pakiranja:
|
Box
|
|
Economic operator in EU / authorized representative:
|
IIYAMA CORPORATION
|
|
Postal address:
|
Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands
|
|
Electronic address:
|
[email protected]
|
|
Vrsta napajanja:
|
Napajanje
|
