Opis:

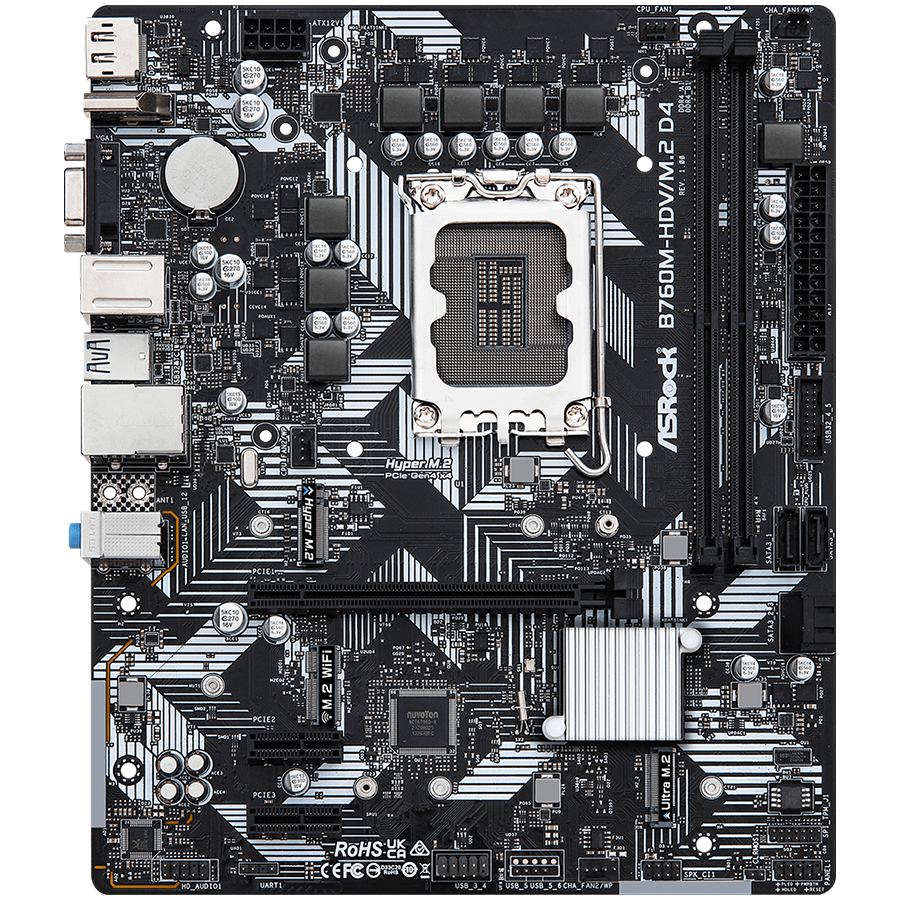

ASROCK MB Desktop B760M-HDV/M.2 D4 (S1700, 2x DDR4, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 1x Hyper M.2 PCIe Gen4x4, 1x M.2 Ultra Gen3x4, 4x SATA3, 1x USB-C, 5x USB 3.2, 5x USB 2.0, 1xRJ-45 1Gbit, 1x VGA, 1x HDMI, 1x DP, mATX
Karakteristike:
ASROCK MB Desktop B760M-HDV/M.2 D4 (S1700, 2x DDR4, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 1x Hyper M.2 PCIe Gen4x4, 1x M.2 Ultra Gen3x4, 4x SATA3, 1x USB-C, 5x USB 3.2, 5x USB 2.0, 1xRJ-45 1Gbit, 1x VGA, 1x HDMI, 1x DP, mATX
| Tehničke karakteristike |
|
|
Chipset:
|
Intel B760
|
|
Supports Central Processor Unit:
|
Intel 12th Gen Processors
Intel 13th Gen Processors
Intel 14th Gen Processors
|
|
CPU podnoĹľje:
|
Socket 1700
|
|
Architecture Features:
|
Intel Turbo Boost Technology 3.0
Intel Hybrid Technology
Intel Thermal Velocity Boost
Intel Adaptive Boost Technology
|
|
CPU Maximum Quantity Supports:
|
1
|
|
Vrsta memorije:
|
DDR4 SDRAM
|
|
Memory Form Factor:
|
DIMM 288-pin
|
|
Memory Speed:
|
5333MHz(PC4-42600)
|
|
Maximum Installable System Memory Storage Capacity:
|
64 GB
|
|
Memory Slot Total Quantity:
|
2
|
|
Provides Error Checking Method:
|
non-ECC
|
|
Memory Features:
|
Unbuffered
XMP 2.0
|
|
Support:
|
Wi-Fi Controller:
1 x M.2 (Key E)
|
|
Integrated:
|
Storage Controller:
PCI Express 4.0 x4 (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
|
|
Video Controller Integrated:
|
yes
|
|
Video Chipset:
|
Intel Iris Xe Graphics
|
|
Audio Integrated:
|
yes
|
|
Device Location:
|
Integrated
|
|
Audio Chipset:
|
Realtek ALC887/ALC897
|
|
Audio Output Mode:
|
7.1 Channel Surround
|
|
Compliant Audio Standards:
|
High Definition Audio
|
|
LAN Integrated:
|
yes
|
|
LAN Chipset:
|
Realtek RTL8111H
|
|
Data Link Protocol Supports:
|
Gigabit Ethernet/Fast Ethernet/Ethernet
|
|
PCI Express 4.0 x16:
|
1
|
|
PCI Express 3.0 x1:
|
2
|
|
USB 3.2 Gen 1:
|
1 (USB 3.2 (type C)); 3 (USB 3.2 (type A))
|
|
VGA:
|
1 (15-pin D-sub)
|
|
DisplayPort:
|
1
|
|
HDMI:
|
1 (HDMI (Type A))
|
|
LAN:
|
1 (RJ-45)
|
|
Audio Interface:
|
3 (3.5-mm minijack)
|
|
USB 2.0:
|
2 (USB 2.0 (type A))
|
|
Antenna:
|
2
|
|
PS/2:
|
1
|
|
BIOS Type:
|
AMI
|
|
BIOS Features:
|
UEFI
128Mb AMI UEFI Legal BIOS with GUI Support
ASRockRack Instant Flash
|
|
Supported Operating System:
|
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
|
|
Cable Included:
|
2 x SATA Data Cables
|
|
Included Accessories:
|
I/O Shield
Quick Start Guide
Screws
|
|
Form Factor:
|
Micro ATX
|
|
Height (mm):
|
201 mm
|
|
Width (mm):
|
244 mm
|
|
Warranty Products Returnable:
|
Yes
|
|
Warranty Term (month):
|
36 month(s)
|
|
Warranty validation Criteria:
|
Serial Number
|
|
Pack Weight Brutto (kg):
|
0.795 kg
|
|
Pack Weight Netto (kg):
|
0.465 kg
|
|
Pieces in pack:
|
1
|
|
Box Weight Brutto (kg):
|
16.69 kg
|
|
Retail Packaging Net Weight Carton:
|
0.3 kg
|
|
Retail Packaging Net Weight Plastic:
|
0.3 kg
|
|
Packs in Box:
|
20
|
|
Package Type:
|
Retail
|
|
EAN Code:
|
4710483942020
|
|
Pack Length (mm):
|
275 mm
|
|
Pack Width (mm):
|
240 mm
|
|
Pack Height (mm):
|
58 mm
|
|
CPU podrška:
|
Intel 12th Gen Processors
Intel 13th Gen Processors
Intel 14th Gen Processors
|
|
CPU Max. koliÄŤina:
|
1
|
|
Format memorije:
|
DIMM 288-pin
|
|
Brzina memorije:
|
5333MHz(PC4-42600)
|
|
Max. kapacitet memorije:
|
64 GB
|
|
KoliÄŤina utora:
|
2
|
|
Provjera pogrešaka:
|
non-ECC
|
|
ZnaÄŤajke memorije:
|
Unbuffered
XMP 2.0
|
|
Integrirani video kontroler:
|
Da
|
|
Model:
|
Intel Iris Xe Graphics
|
|
Integrirani audio:
|
Da
|
|
Lokacija:
|
Integrirano
|
|
NaÄŤin rada audio izlaza:
|
7.1 Channel Surround
|
|
Audio standard:
|
HD audio
|
|
Integrirani LAN:
|
Da
|
|
PodrĹľana brzina:
|
Gigabit Ethernet/Fast Ethernet/Ethernet
|
|
Audio izlaz:
|
3 (3.5-mm minijack)
|
|
BIOS tip:
|
AMI
|
|
BIOS:
|
UEFI
128Mb AMI UEFI Legal BIOS with GUI Support
ASRockRack Instant Flash
|
|
PodrĹľani operativni sustavi:
|
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
|
|
Dodaci:
|
I/O Shield
Brzi priruÄŤnik
Vijci
|
|
Format:
|
Micro ATX
|
|
Visina (mm):
|
201 mm
|
|
Ĺ irina (mm):
|
244 mm
|
|
Jamstvo u Hrvatskoj:
|
Da
|
|
Jamstveni rok (mjeseci):
|
36 mjeseci(a)
|
|
Validacija jamstva:
|
Serijski broj
|
|
DuĹľina (mm):
|
275 mm
|
|
Ĺ irina (mm):
|
240 mm
|
|
Visina (mm):
|
58 mm
|
|
Bruto teĹľina (kg):
|
0.795 kg
|
|
Neto teĹľina (kg):
|
0.465 kg
|
|
KoliÄŤina u pakiranju:
|
1
|
|
Bruto teĹľina kutije (kg):
|
16.69 kg
|
|
TeĹľina kartona:
|
0.3 kg
|
|
TeĹľina plastike:
|
0.3 kg
|
|
KoliÄŤina u kutiji:
|
20
|
|
Tip pakiranja:
|
Retail
|
|
EAN kod:
|
4710483942020
|
|
Integrirano:
|
Storage Controller:
PCI Express 4.0 x4 (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
|
|
BIOS vrsta:
|
AMI
|
|
Vrsta pakiranja:
|
Maloprodajno
|
|
Economic operator in EU / authorized representative:
|
ASROCK EU B.V
|
|
Postal address:
|
Bijsterhuizen 11-11, 6546AR, Nijmegen, The Netherlands
|
|
Electronic address:
|
[email protected]
|
|
Kabeli:
|
2 x SATA Data Cables
|
|
Chipset:
|
Realtek ALC887/ALC897
|
|
Integriran:
|
Storage Controller:
PCI Express 4.0 x4 (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
|
|
Vrsta:
|
Integriran
|
|
Audio izlaz:
|
7.1 Channel Surround
|
Datum dodavanja u katalog:
14.2.2024. 11:36:07
