| Tehničke karakteristike |
|
|
Marketing Model Name:
|
CU100ACC
|
|
Commercial Name:
|

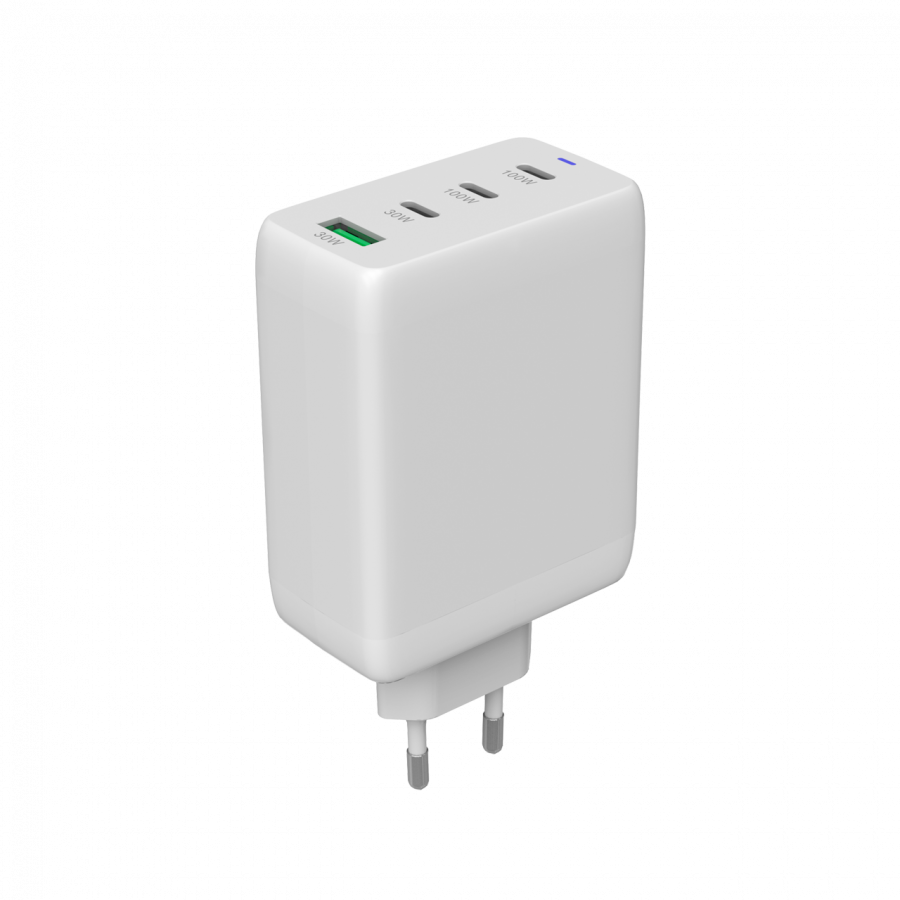

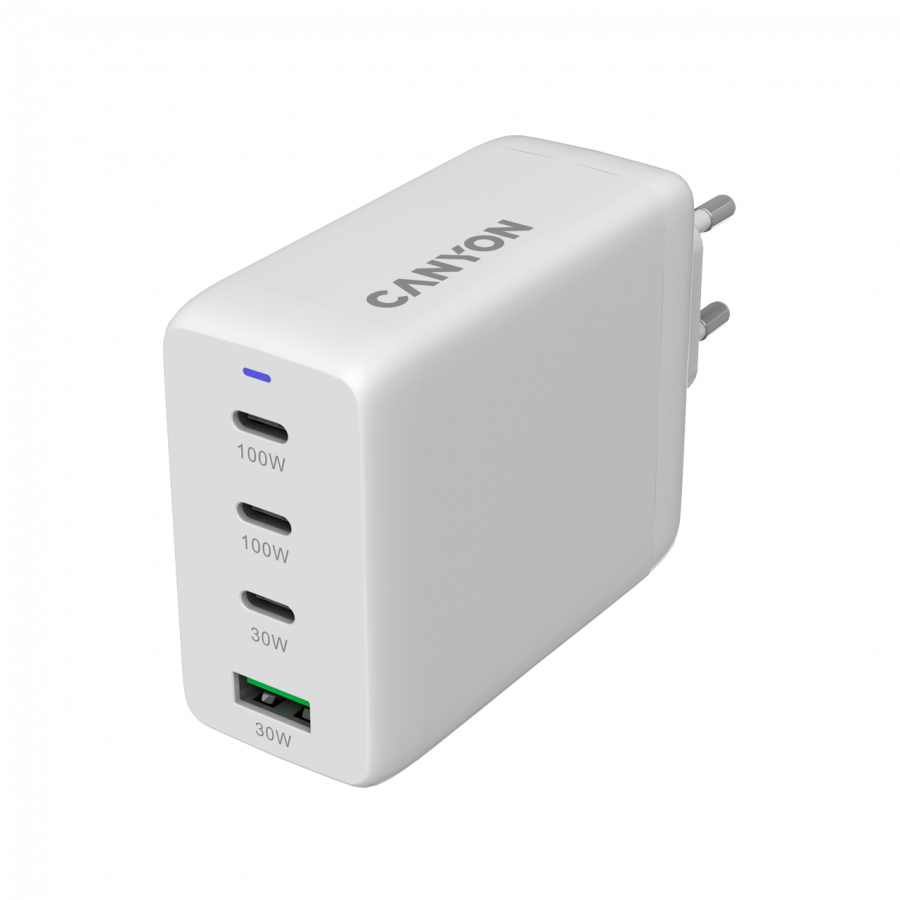

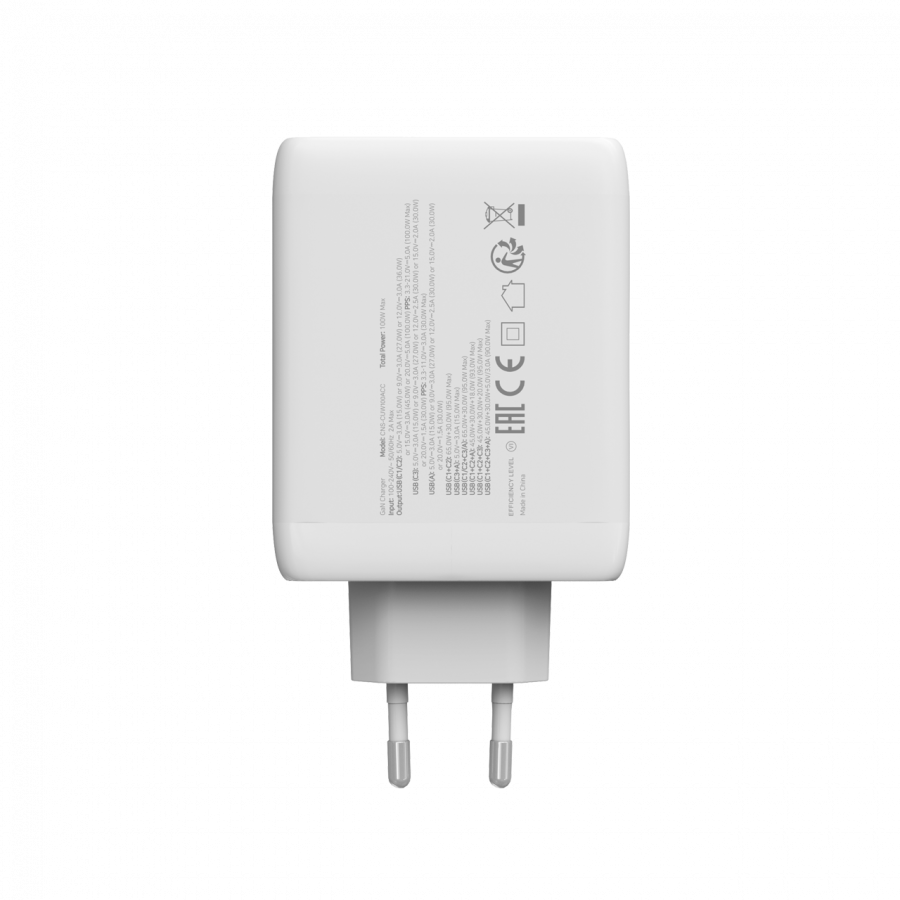

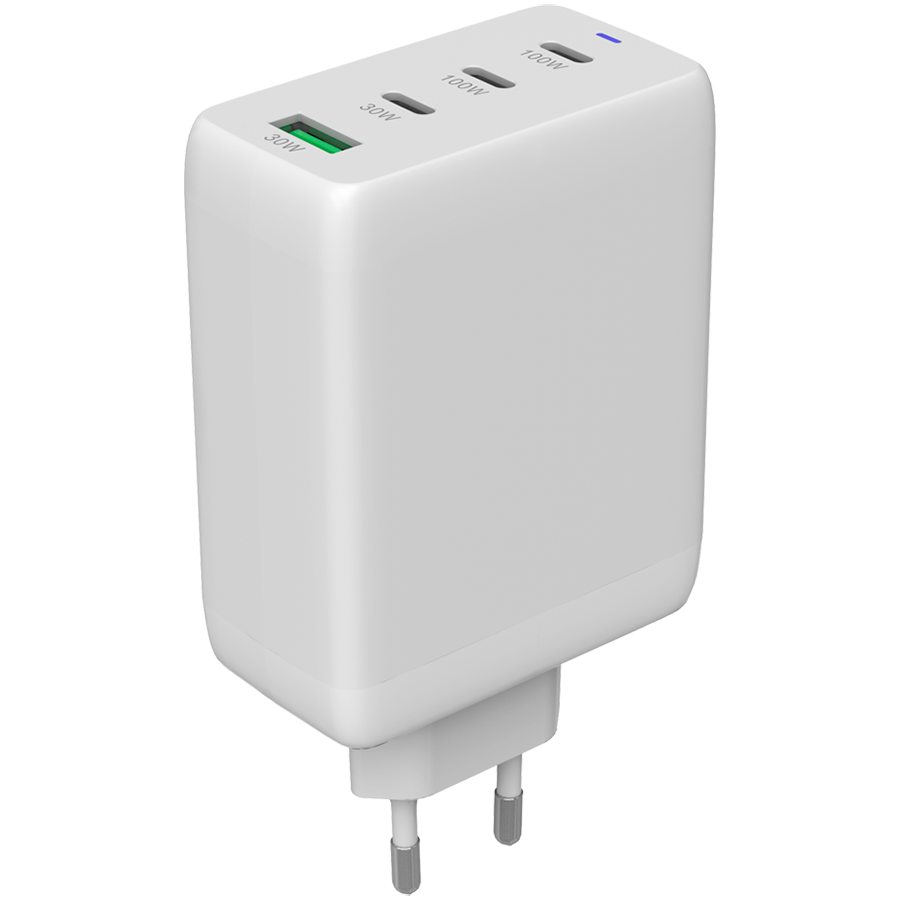

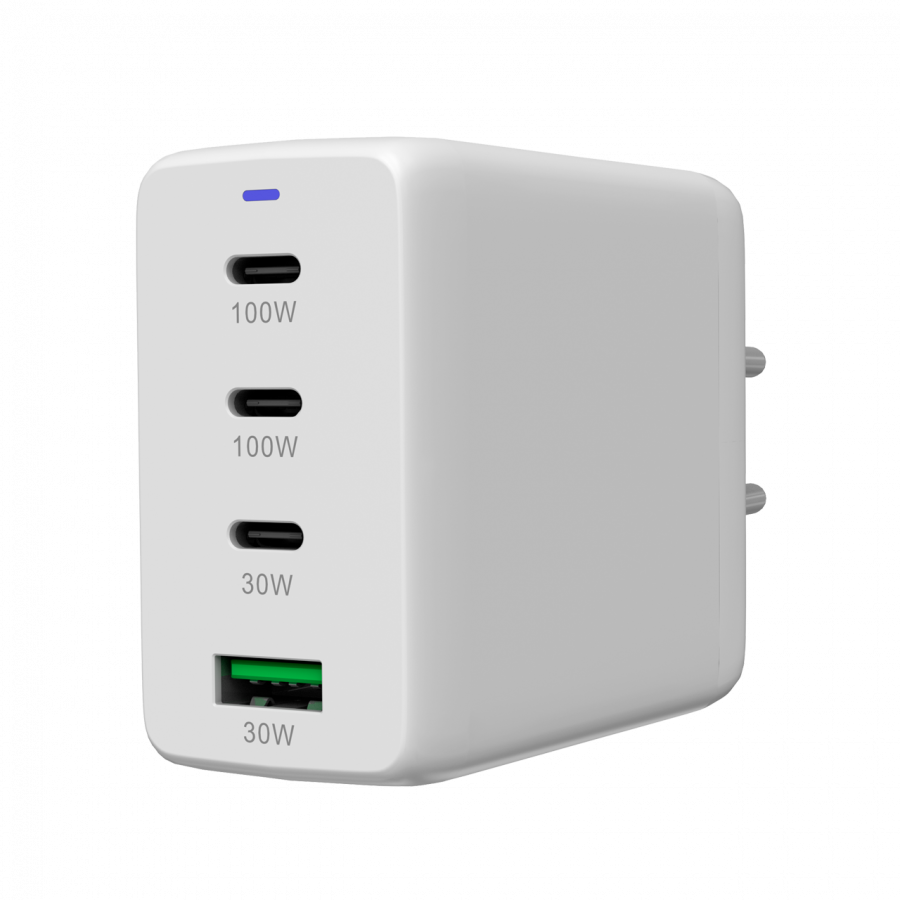

CANYON charger CU100ACC GaN 100W 3xPD 1xQC EU White
|
|
Power Device Type:
|
Power Adapter
|
|
Power Device Location:
|
External
|
|
Input Voltage:
|
AC 100-240 V
|
|
Input Frequency:
|
50/60 Hz
|
|
Rated Input Current:
|
2 A
|
|
Output Voltage:
|
DC 5/9/12/15/20 V
|
|
Rated Current:
|
5 A
|
|
Maximum Output Power:
|
100 W
|
|
Output Power Connectors Quantity:
|
4
|
|
Output Power Connectors Type:
|
USB/USB-C
|
|
Power Adapter and Power Supply Features:
|
GaN Technology
|
|
Power Output:
|
3 (USB Type C), 1 (USB Type-A)
|
|
Warranty Products Returnable:
|
Yes
|
|
Warranty Term (month):
|
24 month(s)
|
|
Warranty validation Criteria:
|
Serial Number
|
|
Pack Length (mm):
|
98 mm
|
|
Pack Width (mm):
|
36 mm
|
|
Pack Height (mm):
|
172 mm
|
|
Pack Weight Brutto (kg):
|
0.37 kg
|
|
Pack Weight Netto (kg):
|
0.325 kg
|
|
Pieces in pack:
|
1
|
|
Box Length (mm):
|
380 mm
|
|
Box Width (mm):
|
196 mm
|
|
Box Height (mm):
|
322 mm
|
|
Box Weight Brutto (kg):
|
11.96 kg
|
|
Retail Packaging Net Weight Carton:
|
0.047 kg
|
|
Retail Packaging Net Weight Plastic:
|
0 kg
|
|
Packs in Box:
|
30
|
|
Package Type:
|
Retail
|
|
EAN Code:
|
5291485017705
|
|
Economic operator in EU / authorized representative:
|
ASBISC Enterprises PLC
|
|
Postal address:
|
1 Iapetou Street, Agios Athanasios, 4101, Limassol, Cyprus
|
|
Electronic address:
|
[email protected]
|
|
Model:
|
CU100ACC
|
|
Naziv:
|
CANYON charger CU100ACC GaN 100W 3xPD 1xQC EU White
|
|
Vrsta napajanja:
|
Strujni adapter
|
|
Napajanje:
|
Vanjski
|
|
Ulazna struja:
|
2 A
|
|
Izlazna snaga:
|
100 W
|
|
ZnaÄŤajke adaptera i napajanja:
|
Isporuka energije
GaN Technology
Quick Charge
Programmable Power Supply (PPS)
|
|
Jamstvo u Hrvatskoj:
|
Da
|
|
Jamstveni rok (mjeseci):
|
24 mjeseci(a)
|
|
Validacija jamstva:
|
Serijski broj
|
|
DuĹľina (mm):
|
98 mm
|
|
Ĺ irina (mm):
|
36 mm
|
|
Visina (mm):
|
171.5 mm
|
|
Bruto teĹľina (kg):
|
0.3718 kg
|
|
Neto teĹľina (kg):
|
0.3248 kg
|
|
KoliÄŤina u pakiranju:
|
1
|
|
DuĹľina kutije (mm):
|
385 mm
|
|
Ĺ irina kutije (mm):
|
196 mm
|
|
Visina kutije (mm):
|
322 mm
|
|
Bruto teĹľina kutije (kg):
|
11.95 kg
|
|
TeĹľina kartona:
|
0.047 kg
|
|
TeĹľina plastike:
|
0 kg
|
|
KoliÄŤina u kutiji:
|
30
|
|
Vrsta pakiranja:
|
Maloprodajno
|
|
EAN kod:
|
5291485017705
|
|
Ulazni napon:
|
AC 100-240 V
|
|
Ulazna frekvencija:
|
50/60 Hz
|
|
Input Power Connectors Quantity:
|
1
|
|
PrikljuÄŤci napajanja:
|
EU
|
|
Izlazni napon:
|
DC 5/9/12/15/20 V
|
|
Zaštita strujnog kruga:
|
Over Voltage
Over Current
Short Circuit Protection
Overheating Protection
|
|
USB Type A:
|
30W (Quick Charge)
|
|
USB Type C1, USB Type C2:
|
100W (PD/PPS)
|
|
USB Type C3:
|
30W (USB Power Delivery)
|
|
Boja:
|
White
|
|
Dubina (mm):
|
32 mm
|
|
Ĺ irina (mm):
|
62 mm
|
|
Visina (mm):
|
76 mm
|
|
Pakiranja na paleti (zraÄŤni prijevoz):
|
60
|
|
Proizvoda na paleti (zraÄŤni prijevoz):
|
1800
|
|
Dimenzije palete (zraÄŤni prijevoz) (cm):
|
1200x1000x1438 mm
|
|
Pakiranja na paleti (brodski prijevoz):
|
90
|
|
Proizvoda na paleti (brodski prijevoz):
|
2700
|
|
Dimenzije palete (brodski prijevoz) (cm):
|
1200x1000x2082 mm
|
|
Included Documentation:
|
Quick Start Guide
Warranty Card
|
