Opis:

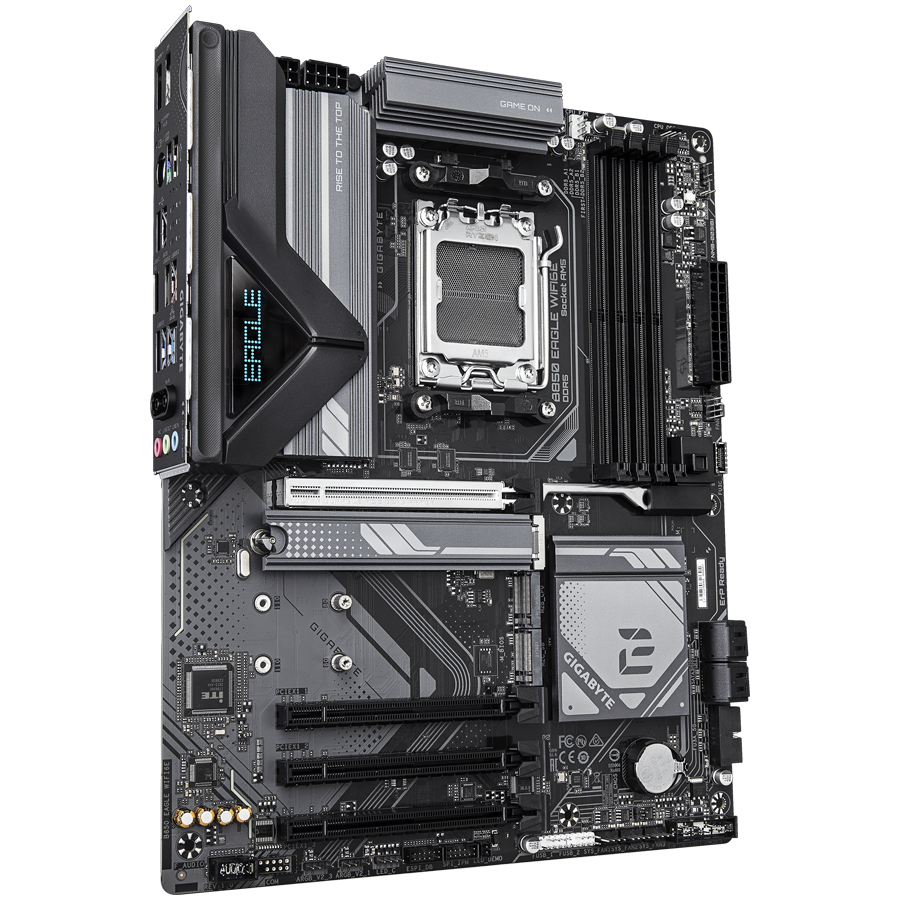

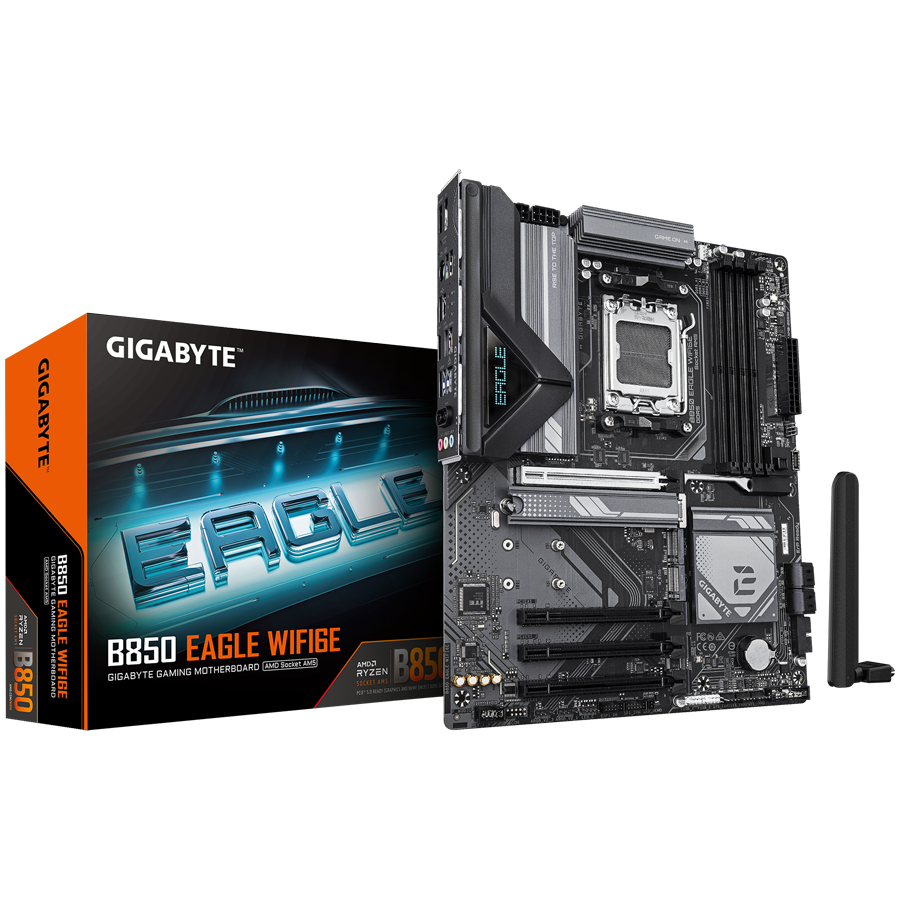

GIGABYTE Mainboard Desktop B850 EAGLE WIFI6E (AM5, 4xDDR5, 1xDP, 1xHDMI, GLAN, WiFi6E, BT5.3, 1x PCIe x16 5.0, 3xPCIe x16 supporting PCIe 3.0 x1, 3xM.2, 4xSATA3) ATX
Karakteristike:
GIGABYTE Mainboard Desktop B850 EAGLE WIFI6E (AM5, 4xDDR5, 1xDP, 1xHDMI, GLAN, WiFi6E, BT5.3, 1x PCIe x16 5.0, 3xPCIe x16 supporting PCIe 3.0 x1, 3xM.2, 4xSATA3) ATX
| Tehničke karakteristike |
|
|
Chipset:
|
AMD B850
|
|
Supports Central Processor Unit:
|
AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series
|
|
CPU podnoĹľje:
|
Socket AM5
|
|
CPU Maximum Quantity Supports:
|
1
|
|
Vrsta memorije:
|
DDR5 SDRAM
|
|
Memory Form Factor:
|
DIMM 288-pin
|
|
Memory Speed:
|
8200MHz
|
|
Maximum Installable System Memory Storage Capacity:
|
256 GB
|
|
Memory Slot Total Quantity:
|
4
|
|
Provides Error Checking Method:
|
Non-ECC
|
|
Memory Features:
|
Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
AMD EXPO
|
|
Integrated:
|
Storage Controller:
PCI Express 5.0 x4 (1 x M.2)
Storage Controller:
PCI Express 4.0 x4 (2 x M.2)
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)
|
|
Plug-in-card:
|
Wi-Fi Controller:
1 x M.2
|
|
Video Controller Integrated:
|
yes
|
|
Video Chipset:
|
AMD Radeon
|
|
Audio Integrated:
|
yes
|
|
Device Location:
|
Integrated
|
|
Audio Output Mode:
|
7.1 Channel Surround
|
|
Compliant Audio Standards:
|
High Definition Audio
|
|
LAN Integrated:
|
yes
|
|
Wi-Fi:
|
IEEE 802.11ax Wi-Fi 6E
|
|
Bluetooth:
|
Bluetooth 5.3
|
|
Data Link Protocol Supports:
|
Gigabit Ethernet/Fast Ethernet/Ethernet
|
|
PCI Express x16:
|
4
|
|
USB 2.0:
|
4 (USB 2.0 (type A))
|
|
USB 3.2 Gen 2:
|
2 (USB 3.2 (type A))
|
|
USB 3.2 Gen 1:
|
1 (USB 3.2 (type C)); 2 (USB 3.2 (type A))
|
|
DisplayPort:
|
1
|
|
Wi-Fi Antenna:
|
2
|
|
LAN:
|
1 (RJ-45)
|
|
Audio Interface:
|
3 (3.5-mm minijack)
|
|
HDMI:
|
1 (HDMI (Type A))
|
|
PS/2:
|
1
|
|
BIOS Type:
|
AMI
|
|
BIOS Features:
|
Gigabyte Q-Flash
WfM 2.0 Support
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
256 Mb Flash ROM
|
|
Mainboard Features:
|
Fan Speed Control
|
|
Software Included:
|
Norton Internet Security (OEM version)
|
|
Supported Operating System:
|
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
|
|
Included Accessories:
|
Quick Start Guide
|
|
Form Factor:
|
ATX
|
|
Height (mm):
|
244 mm
|
|
Width (mm):
|
305 mm
|
|
Warranty Products Returnable:
|
Yes
|
|
Warranty Term (month):
|
36 month(s)
|
|
Warranty validation Criteria:
|
Serial Number
|
|
Pack Weight Brutto (kg):
|
1.84 kg
|
|
Pack Weight Netto (kg):
|
1.76 kg
|
|
Pieces in pack:
|
1
|
|
Box Weight Brutto (kg):
|
14.73 kg
|
|
Retail Packaging Net Weight Carton:
|
0.05 kg
|
|
Retail Packaging Net Weight Plastic:
|
0.03 kg
|
|
Packs in Box:
|
8
|
|
Package Type:
|
Retail
|
|
EAN Code:
|
4719331866587
|
|
CPU podrška:
|
AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series
|
|
CPU Max. koliÄŤina:
|
1
|
|
Format memorije:
|
DIMM 288-pin
|
|
Brzina memorije:
|
8200MHz
|
|
Max. kapacitet memorije:
|
256 GB
|
|
KoliÄŤina utora:
|
4
|
|
Provjera pogrešaka:
|
Non-ECC
|
|
ZnaÄŤajke memorije:
|
Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
AMD EXPO
|
|
Integrirani video kontroler:
|
yes
|
|
Model:
|
AMD Radeon
|
|
Integrirani audio:
|
yes
|
|
Lokacija:
|
Integrirano
|
|
NaÄŤin rada audio izlaza:
|
7.1 Channel Surround
|
|
Audio standard:
|
High Definition Audio
|
|
Integrirani LAN:
|
yes
|
|
PodrĹľana brzina:
|
Gigabit Ethernet/Fast Ethernet/Ethernet
|
|
Audio izlaz:
|
3 (3.5-mm minijack)
|
|
BIOS tip:
|
AMI
|
|
BIOS:
|
Gigabyte Q-Flash
WfM 2.0 Support
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
DMI 2.7 Support
ACPI 5.0 Support
256 Mb Flash ROM
|
|
Softver:
|
Norton Internet Security (OEM version)
|
|
PodrĹľani operativni sustavi:
|
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
|
|
Dodaci:
|
Brzi priruÄŤnik
|
|
Format:
|
ATX
|
|
Visina (mm):
|
244 mm
|
|
Ĺ irina (mm):
|
305 mm
|
|
Jamstvo u Hrvatskoj:
|
Yes
|
|
Jamstveni rok (mjeseci):
|
36 month(s)
|
|
Validacija jamstva:
|
Serial Number
|
|
Bruto teĹľina (kg):
|
1.84 kg
|
|
Neto teĹľina (kg):
|
1.76 kg
|
|
KoliÄŤina u pakiranju:
|
1
|
|
Bruto teĹľina kutije (kg):
|
14.73 kg
|
|
TeĹľina kartona:
|
0.05 kg
|
|
TeĹľina plastike:
|
0.03 kg
|
|
KoliÄŤina u kutiji:
|
8
|
|
Tip pakiranja:
|
Retail
|
|
EAN kod:
|
4719331866587
|
|
Integrirano:
|
Storage Controller:
PCI Express 5.0 x4 (1 x M.2)
Storage Controller:
PCI Express 4.0 x4 (2 x M.2)
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)
|
|
BIOS vrsta:
|
AMI
|
|
Vrsta pakiranja:
|
Retail
|
Datum dodavanja u katalog:
4.4.2025. 20:31:38
